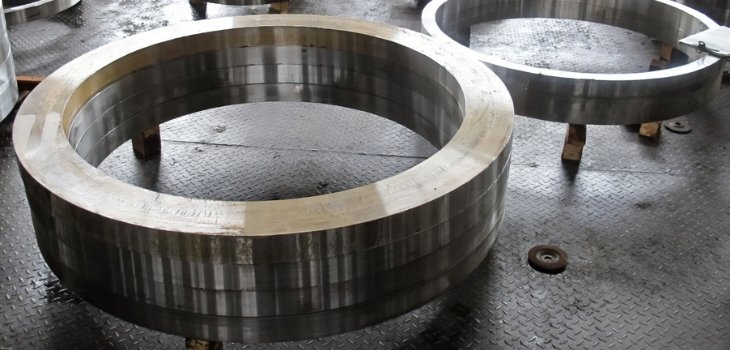

Forged Ring Manufacturer and Supplier in India
Neelam Forge India is one of the prime Forged Ring Manufacturers and Suppliers in India. We ensure high-quality and competitive price supply of Forged Ring and thus reliability in any industry. We have a large selection of our Forged Rings, the thickness of which ranges between 1 mm and 200 mm, outer diameter (OD) between 10 mm and 3000 mm, and can be used in various applications such as socket ring components. As an ISO certified company, we have great corrosion resistance (grade dependent) and the lowest price of forged rings in the market.
TABLE OF CONTENTS
Open Die Rolled Ring Manufacturers, Plate Cut Ring Price, Socket Ring Supplier, Seamless Rolled Ring Stockholders, Hot Rolled Ring Manufacturers in India
Neelam Forge India is a highly recommended Forged Ring Manufacturer and Supplier in India. Our Hot-Rolled Ring materials are supply with accuracy, with inner diameter (ID) as per drawing or customer specifications, and hardness as per the grade of material. We maintain high standards of tolerance within ASTM / DIN or tailor-made specifications, with thorough testing such as PMI, hardness, dimensional, and chemical analysis. We have been serving the oil and gas, chemical and construction industries, and supply reliability and performance in each Forged Ring. We are also a prominent SS Flange Manufacturer in India.
Standard Specification of Forged Ring
| Standard | IS, ASTM, DIN, EN, BS |
| Type | Flat Ring, Forged Ring, Machined Ring |
| Outer Diameter (OD) | 10 mm to 3000 mm |
| Inner Diameter (ID) | As per drawing / requirement |
| Thickness | 1 mm to 200 mm |
| Manufacturing Process | Forged / Rolled / Machined |
| Surface Finish | Mill Finish, Pickled, Polished, Mirror Finish |
| Tolerance | As per ASTM / DIN or Customer Requirement |
| Hardness | As per material grade |
| Corrosion Resistance | Excellent (Grade dependent) |
| Temperature Resistance | Up to 870°C (Grade dependent) |
| Applications | Flanges, Bearings, Seals, Gaskets, Pressure Vessels, Heavy Engineering |
| Industries Served | Oil & Gas, Chemical, Power Plant, Marine, Construction |
| Customization | Size, Grade, Finish as per drawing |
| Country of Origin | India |
| Testing | PMI, Hardness, Dimensional, Chemical |
| Packing | Wooden Box / Pallet / Export Packing |
Types of Forged Ring
Rolled Rings are available in both open die Forging and closed die Forging, maintaining flexibility in production while preserving the original scope of applications.
Forged Ring Process
| Process | Diagram |
|---|---|
| Sized as required and then upset to obtain the desired mechanical properties. |  |
| The center is pierced to enable the ring rolling process. |  |
| Ring rolling |  |
| Internal and external diameter pressure (ID & OD pressure). |  |
| Ring diameters expand as pressure on the ID and OD increases. |
|
| The required size is achieved. |  |
Forged Ring Equipment
| Forging Range | Details |
| Up to 28 Tons | Single-stage forging carried out using a 3150-ton free forging hydraulic press |
| Up to 60 Tons (Ingot) | Material handling supported by a 60/30-ton crane system |
| 5000 × 1500 × 1200 mm | Trolley-type heating furnace for uniform and efficient heating |
| Up to 16 Tons | Rolling forging machine with capacity up to 5000 mm diameter |
| Up to 7.5 Tons | Forging performed using an 8-ton free forging hammer |
| Ø2500 × 10000 mm | Vertical heating furnace designed for large-sized jobs |
| Up to 4.5 Tons | Precision forging supported by a 5-ton free forging hammer |
| Up to 7.5 Tons | Assisted by a 10-ton forging handling system for smooth operations |
| Up to 80 Tons (Ingot) | Heavy-duty lifting managed by an 80-ton crane |
Different Types Of Forged Ring Available in Stock
Application Of Forged Ring

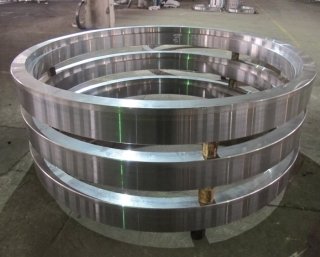

Packing Of Forged Ring
The packing is done export-worthy, making sure the client receives our Forged Ring in good condition.
