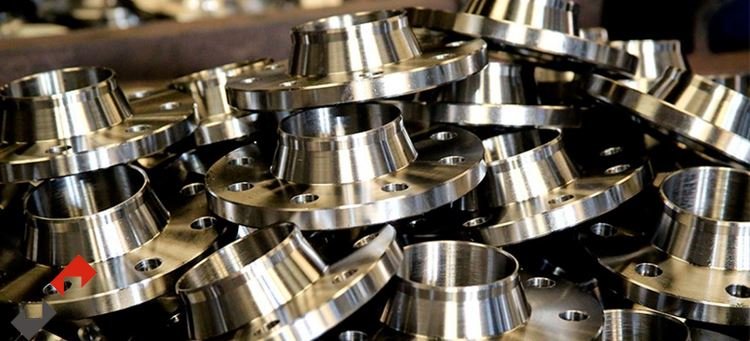

Neelam Forge India is a reliable Monel Flanges supplier in India that provides high-quality Monel Pipe Flanges along with Spectacle Blind Flanges and Slip-On Flanges to serve industrial requirements. The production of Monel K400 Blind Flanges with premium materials of Monel 400 and Monel K500 to deliver outstanding flanges with strength corrosion resistance and extended durability. The expert team at our facility pursues ISO standards with international specifications to manufactures exact flange solutions that follows to worldwide industry needs. We provide large stock and rapid delivery of Monel Spectacle Blind Flange product lines as trusted stockists. We supply exceptional Monel flanges with thorough quality testing and expert technical support.
TABLE OF CONTENTS
Monel 400 Flanges Supplier, EN-1092 Monel 400 Forged Flanges, Monel Nippo Flanges, Monel Alloy K400 RTJ Flange, Monel 400 Socket Weld Flanges, ANSI B16.5 Monel Alloy Orifice Flange Supplier in India
Neelam Forge India is a respected Monel 400 Flanges Manufacturer and Supplier in India. We also supply EN-1092 Monel 400 Forged Flanges together with Monel Nippo Flanges and Monel Alloy K400 RTJ Flanges for various industrial applications. We stock Monel 400 Socket Weld Flanges together with ANSI B16.5 Monel Alloy Orifice Flanges for dimensions from ½" to 48" in specifications tailored to meet individual client needs. The Monel Slip On Flanges has various coating options such as Hot-Dip Galvanizing, Epoxy Coating, Anti-Rust Oil Coating, and PTFE Coating to enhance both lifespan and anti-corrosive properties. We are largest SS Flange Manufacturer.
Standard Specification of Monel Industrial Flanges
| Standards | ASTM B564 / ASME SB564 |
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Monel Flanges Grades Available
Check Monel 400 Flange, 500 Alloy Steel Flanges suppliers available grades.
Monel Pipe Flanges Weight Chart
|
Standard |
Class |
Diameter |
Bolt Circle Diameter |
Number of Bolts |
Bolt Size |
Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
|
AS4087 Flanges |
PN14 |
95 |
67 |
4 |
M12 |
14 |
|
AS 2129 Flange
|
Table C |
95 |
67 |
4 |
13 |
14 |
|
Table D |
95 |
67 |
4 |
13 |
14 |
|
|
Table E |
95 |
67 |
4 |
13 |
14 |
|
|
Table F |
95 |
67 |
4 |
13 |
14 |
|
|
Table H |
114 |
83 |
4 |
16 |
17 |
|
|
Table J |
114 |
83 |
4 |
16 |
17 |
|
|
ANSI B16.5
|
ANSI 150 |
89 |
60 |
4 |
13 |
16 |
|
ANSI 300 |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 600 |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 900 |
121 |
83 |
4 |
19 |
22 |
|
|
ANSI 1500 |
121 |
83 |
4 |
19 |
22 |
|
|
ISO 7005 (DIN) Flange
|
PN6 |
80 |
55 |
4 |
M10 |
11 |
|
PN10 |
95 |
65 |
4 |
M12 |
14 |
|
|
PN16 |
95 |
65 |
4 |
M12 |
14 |
|
|
PN20 |
90 |
60.5 |
4 |
M14 |
16 |
|
|
PN25 |
95 |
65 |
4 |
M12 |
14 |
|
|
PN40 |
95 |
65 |
4 |
M12 |
14 |
Monel Plate Flange Manufacturer in India at discounted Price, Types of Monel Flanges
Monel Flange Pressure Ratings
| ANSI/ASME B16.34 | PRESSURE RATING CHART | ||||||
|---|---|---|---|---|---|---|---|
| Temperature °F | 150# | 400# | 600# | 300# | 1500# | 900# | 2500# |
| -20 to 100 | 275 | 960 | 1440 | 720 | 3600 | 2160 | 6000 |
| 400 | 190 | 660 | 995 | 495 | 2485 | 1490 | 4140 |
| 200 | 230 | 800 | 1200 | 600 | 3000 | 1800 | 5000 |
| 300 | 205 | 720 | 1080 | 540 | 2700 | 1620 | 4500 |
| 500 | 170 | 620 | 930 | 465 | 2330 | 1395 | 3880 |
| 700 | 110 | 565 | 850 | 425 | 2125 | 1275 | 3540 |
| 600 | 140 | 580 | 875 | 435 | 2185 | 1310 | 3640 |
| 650 | 125 | 575 | 860 | 430 | 2150 | 1290 | 3580 |
| 750 | 95 | 555 | 830 | 415 | 2075 | 1245 | 3460 |
| 900 | 50 | 520 | 780 | 390 | 1945 | 1165 | 3240 |
| 800 | 80 | 540 | 805 | 405 | 2015 | 1210 | 3360 |
| 850 | 65 | 530 | 790 | 395 | 1980 | 1190 | 3300 |
| 950 | 35 | 510 | 765 | 380 | 1910 | 1145 | 3180 |
| 1100 | 20 | 345 | 515 | 255 | 1285 | 770 | 2145 |
| 1000 | 20 | 430 | 640 | 320 | 1605 | 965 | 2675 |
| 1050 | 20 | 410 | 615 | 310 | 1545 | 925 | 2570 |
| 1150 | 20 | 265 | 400 | 200 | 995 | 595 | 1655 |
| 1300 | 20 | 115 | 170 | 85 | 430 | 255 | 715 |
| 1200 | 20 | 205 | 310 | 155 | 770 | 465 | 1285 |
| 1250 | 20 | 150 | 225 | 115 | 565 | 340 | 945 |
| 1450 | 15 | 45 | 70 | 35 | 170 | 105 | 285 |
| 1350 | 20 | 80 | 125 | 60 | 310 | 185 | 515 |
| 1400 | 20 | 65 | 95 | 50 | 240 | 145 | 400 |
| 1500 | 10 | 35 | 55 | 25 | 135 | 80 | 230 |
Chemical Composition of Monel Flanges
|
Element |
C |
Mn |
Si |
Cu |
Al |
S |
Fe |
Ni |
|
Monel 400 |
0.30 max |
2.00 max |
0.50 max |
28.00 – 34.00 |
– |
0.024 max |
2.50 max |
63.00 min |
|
Monel K500 |
0.25 max |
1.5 max |
0.5 max |
27.0 – 33.0 |
2.3 – 3.15 |
0.010 max |
05 – 2 |
63.0 min |
Mechanical Properties of Monel Flanges
|
Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
Hardness (Brinell) |
|
Monel 400 |
8.8 g/cm3 |
1350 °C (2460 °F) |
Psi – 80,000 , MPa – 550 |
Psi – 35,000 , MPa – 240 |
40 % |
– |
|
Monel K500 |
8.44 g/cm3 |
1350 °C (2460 °F) |
Psi – 1,60,000 , MPa – 1100 |
Psi – 1,15,000 , MPa – 790 |
20 % |
– |
Monel Flanges Equivalent Grades
|
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
|
Monel 400 |
N04400 |
2.4360 |
NW 4400 |
NU-30M |
NA 13 |
МНЖМц 28-2,5-1,5 |
NiCu30Fe |
|
Monel K500 |
N05500 |
2.4375 |
– |
– |
– |
– |
– |
Application Of Monel Flanges
Packing Of Monel Flange
The packing is done export-worthy, making sure the client receives our flanges in good condition.
Neelam Forge India is a Manufacturer and Supplier of Monel Flanges supplying in all Ratings up to 2500#.- Neelam Forge India
