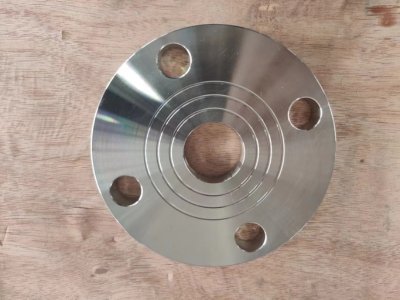

Stainless Steel Flange Manufacturer in Bhubaneswar
Stainless Steel Flange Supplier in Bhubaneswar, SS Flange Manufacturer in Bhubaneswar
Neelam Forge is an established Stainless Steel Flanges manufacturer in Bhubaneswar. Our Stainless Steel Flanges are also of very good quality since they satisfy the requirements of the international standards, which include the ASTM, ASME, and DIN standards. Even the sizes and lengths are proper through the use of modern technologies and the checking of the manufacturing of products. Through the steps of mechanical and chemical tests, the SS flange as far as strength and corrosion, and durability, of the flange is concerned will be run, depending on the type of industrial application that has to be taken on. We are an ISO 9001:2008 certified company, If you are looking for Stainless Steel Slip on Flanges manufacturers in Bhubaneswar, Neelam Forge India is your go-to supplier for your requirements.
TABLE OF CONTENTS

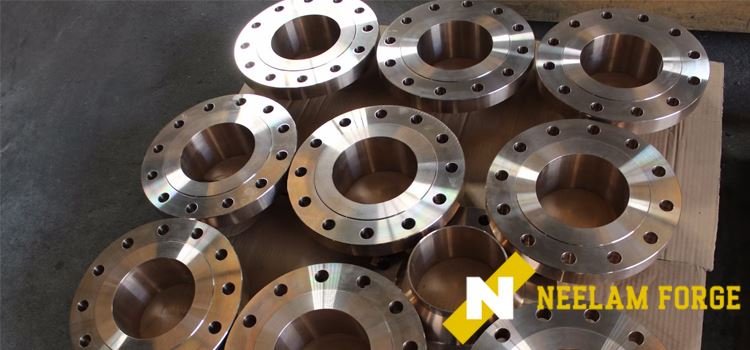

SS Plate Flange, Stainless Steel Blind Flange, Stainless Steel Flanges Supplier In Bhubaneswar
Neelam Forge is one of the biggest Stainless Steel Flange suppliers and dealers in Bhubaneswar. One thing that our SS flanges made in all our classes achieve is accuracy and mightiness, and the technology applied therein is highly and most advanced. In our business, we have a broad usage of Stainless Steel flanges in the oil and gas, chemical industry, power, and water treatment. Our entire SS flanges are pressure driven and thus are corrosion resistant, and thus they can be used in industry and even in long-term use. In case you need only, Stainless Steel RTJ Flanges of a particular size you can reach us at sales@neelamforgeindia.com.
Before exporting SS Threaded Flange, we always make sure that Flanges undergo a proper quality assurance check for the product’s quality. We carry out several tests which include hardness, mechanical, chemical, positive material, and IGC (Intergranular Corrosion) tests. Lastly, we have third-party tests, which conform to customer requirements of special tests for respective clients.
Standard Specification of ASTM A182 Stainless Steel Pipe Flanges
| Manufacturer Specifications | ASTM A182 Stainless Steel Flanges |
| Types Of SS Flanges | Blind/ Slip On/ Weld Neck/ Socket Weld/ RTJ/ Lap Joint/ Threaded/ Reducing Flanges |
| SS Flange Dimensions | EN 1092-1/ EN 1092-2/ DIN 2501/ DIN 2527 |
| Size | 1" (12 NB) to 48" (1000NB) DN10~DN5000 |
| Face Type | Ring Type Joint (RTJ)/ Raised Face/ Flat Face |
| Available Grades | ASTM A182 F304 & F304L/ ASTM A182 F316 & F316L/ ASTM A182. |
| Flange Forging Methods | Forging/ Casting/ Rolling And Cutting |
| Pressure Rating | Class 150/ Class 300/ Class 400/ Class 600/ Class 600/ Class 900/ Class 1500/ Class 2500. |
| Pressure Calculation in DIN | PN6, PN10, PN25, PN40, PN64 | 6Bar, 10Bar, 16Bar, 25Bar, 40Bar. |
Stainless Steel Pipe Flanges Grades Available in Bhubaneswar
SS Weldneck Flange Pressure Ratings
| ANSI/ASME B16.34 | PRESSURE RATING CHART | ||||||
| Temperature °F | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
SAE Stainless Steel Flange Manufacturer in Bhubaneswar at discounted Price, Types of Stainless Steel Flanges
Equivalent Grades of Stainless Steel Flanges
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 304H | 1.4301 | S30409 | – | – | – | – | – |
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | – | X8CrNi25-21 |
| SS 310H | – | S31009 | – | – | – | – | – |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SS 316H | 1.4401 | S31609 | – | – | – | – | – |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| SS 317 | 1.4449 | S31700 | SUS 317 | – | – | – | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | – | – | – | X2CrNiMo18-15-4 |
| SS 321 | 1.4541 | S32100 | SUS 321 | – | – | – | X6CrNiTi18-10 |
| SS 347 | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
Stainless Steel Flanges Chemical Composition
| Type | Carbon | Manganese | Phosphorus | Sulphur | Silicon | Chromium | Nickel | Molybdenum |
|---|---|---|---|---|---|---|---|---|
| 302 | 0.15 | 2.00 | 0.045 | 0.030 | 1.00 | 17.00/19.00 | 8.00/10.00 | – |
| 309 | 0.20 | 2.00 | 0.045 | 0.030 | 1.00 | 22.00/24.00 | 12.00/15.00 | – |
| 304L* | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00/20.00 | 8.00/12.00 | – |
| 304* | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00/20.00 | 8.00/10.50 | – |
| 309S | 0.08 | 2.00 | 0.045 | – | 1.00 | 22.00/24.00 | – | – |
| 317 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00/1.00 | 18.00/20.00 | 11.00/15.00 | 3.00/4.00 |
| 310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.5 | 24.00/26.00 | 19.00/22.00 | – |
| 316* | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00/18.00 | 10.00/14.00 | 2.00/3.00 |
| 310 | 0.25 | 2.00 | 0.045 | 0.030 | 1.5 | 24.00/26.00 | 19.00/22.00 | – |
| 316L* | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00/18.00 | 10.00/14.00 | 2.00/3.00 |
| 347 | 0.08 | 2.00 | 0.040 | 0.030 | 0.5/1.00 | 17.00/19.00 | 9.00/12.00 | 0.5/0.75 |
| 317L | 0.03 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00/20.00 | 11.00/15.00 | 3.00/4.00 |
| 321 | 0.08 | 2.00 | 0.040 | 0.030 | 1.00 | 17.00/19.00 | 9.00/12.00 | 0.75/0.75 |
Mechanical Properties of Stainless Steel Slipon Flanges
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Heat Treating Temperature, min or range (°C) |
|---|---|---|---|---|
| 304/304H | 515 min | 205 min | 28% | 1040 |
| 304L | 485 min | 170 min | 28% | 1040 |
| 310/310S | 515 min | 205 min | 28% | 1040 |
| 316/316H | 515 min | 205 min | 28% | 1040 |
| 316L | 485 min | 170 min | 28% | 1040 |
| 316Ti | 515 min | 205 min | 28% | 1040 |
| 317/317L | 515 min | 205 min | 28% | 1040 |
| 321/321H | 515 min | 205 min | 28% | 1040-1050 |
Application Of Stainless Steel Flanges
Packing Of Stainless Steel Flange
The packing is done export-worthy, making sure the client receives our flanges in good condition.
Stainless Steel Flange in Bhubaneswar At Lowest Price, Check Online SS SORF Flange Price List in Bhubaneswar.- Neelam Forge India
Different Types Of SS Flanges Stock Available in Bhubaneswar
SS Flange Manufacturer and Supplier in Indian Cities
Neelam Forge India is a highly acclaimed Supplier and Manufacturer of SS Flanges. With a major presence in Bhubaneswar and other cities and a trustworthy supplier of SS Flanges, we continue to be in a leading position in supplying durable, robust, and high-quality Stainless Steel Plate Flanges to customers across India.
