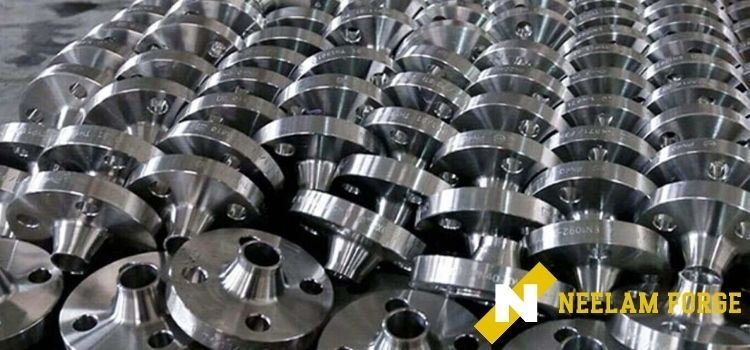

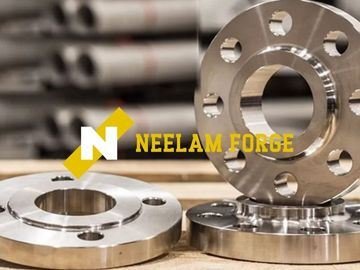

Stainless Steel Flange Manufacturer in Kolkata
Stainless Steel Flange Supplier in Baranagar, SS Flange Manufacturer in Kolkata
Neelam Forge India ranks among the most Reputed Stainless Steel Flange Manufacturers in Kolkata. Our SS Lap Joint Flanges Flanges are produced using the finest super-austenitic with low carbon contents, and thus, they guarantee longevity to the flanges. Kolkata always in need of good resistance performance and largely applicable, the demand from SS Orifice Flanges has always been high at Kolkata. These steel pipe flanges, being capable of providing repetitive bolting, welding, and maintenance, find extensive use in welding and maintenance operations to seal the pipe ends; a survey has identified that throughout Kolkata, these are effectively applied to seal the pipe ends.
TABLE OF CONTENTS
SS Flange Manufacturers, ASME SA182 Stainless Steel Flange Price, SS Flange Supplier, Stainless Steel Flange Manufacturer in Kolkata
Neelam Forge India, is one of the noted Stainless Steel Flanges Manufacturers, and Suppliers in Kolkata. We have generalized much into the rising market of stainless steel made products. As one of the prominent and trusted Stainless Steel Flange Suppliers, we comprehensively understand the special needs of the Jute Processing Industry. sectors in Kolkata. Mail us at sales@neelamforgeindia.com to get a quote on some particular flange or to get any further information on Stainless Steel Flanges.
Standard Specification of Stainless Steel PN10 Flanges
| Manufacturer Specifications | ASTM A182 Stainless Steel Flanges |
| Types Of SS Flanges | Blind/ Slip On/ Weld Neck/ Socket Weld/ RTJ/ Lap Joint/ Threaded/ Reducing Flanges |
| SS Flange Dimensions | EN 1092-1/ EN 1092-2/ DIN 2501/ DIN 2527 |
| Size | 1" (12 NB) to 48" (1000NB) DN10~DN5000 |
| Face Type | Ring Type Joint (RTJ)/ Raised Face/ Flat Face |
| Available Grades | ASTM A182 F304 & F304L/ ASTM A182 F316 & F316L/ ASTM A182. |
| Flange Forging Methods | Forging/ Casting/ Rolling And Cutting |
| Pressure Rating | Class 150/ Class 300/ Class 400/ Class 600/ Class 600/ Class 900/ Class 1500/ Class 2500. |
| Pressure Calculation in DIN | PN6, PN10, PN25, PN40, PN64 | 6Bar, 10Bar, 16Bar, 25Bar, 40Bar. |
Stainless Steel Pipe Flanges Grades Available in Kolkata
SS Socketweld Flange Supplier - Pressure Ratings
| ANSI/ASME B16.34 | PRESSURE RATING CHART | ||||||
| Temperature °F | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
SAE Stainless Steel Flange Supplier in Kolkata at discounted Price, Types of Stainless Steel Flanges
Equivalent Grades of Stainless Steel Flanges
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 304H | 1.4301 | S30409 | – | – | – | – | – |
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | – | X8CrNi25-21 |
| SS 310H | – | S31009 | – | – | – | – | – |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SS 316H | 1.4401 | S31609 | – | – | – | – | – |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| SS 317 | 1.4449 | S31700 | SUS 317 | – | – | – | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | – | – | – | X2CrNiMo18-15-4 |
| SS 321 | 1.4541 | S32100 | SUS 321 | – | – | – | X6CrNiTi18-10 |
| SS 347 | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
Stainless Steel Flanges Chemical Composition
| Type | Carbon | Manganese | Phosphorus | Sulphur | Silicon | Chromium | Nickel | Molybdenum |
|---|---|---|---|---|---|---|---|---|
| 302 | 0.15 | 2.00 | 0.045 | 0.030 | 1.00 | 17.00/19.00 | 8.00/10.00 | – |
| 309 | 0.20 | 2.00 | 0.045 | 0.030 | 1.00 | 22.00/24.00 | 12.00/15.00 | – |
| 304L* | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00/20.00 | 8.00/12.00 | – |
| 304* | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00/20.00 | 8.00/10.50 | – |
| 309S | 0.08 | 2.00 | 0.045 | – | 1.00 | 22.00/24.00 | – | – |
| 317 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00/1.00 | 18.00/20.00 | 11.00/15.00 | 3.00/4.00 |
| 310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.5 | 24.00/26.00 | 19.00/22.00 | – |
| 316* | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00/18.00 | 10.00/14.00 | 2.00/3.00 |
| 310 | 0.25 | 2.00 | 0.045 | 0.030 | 1.5 | 24.00/26.00 | 19.00/22.00 | – |
| 316L* | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00/18.00 | 10.00/14.00 | 2.00/3.00 |
| 347 | 0.08 | 2.00 | 0.040 | 0.030 | 0.5/1.00 | 17.00/19.00 | 9.00/12.00 | 0.5/0.75 |
| 317L | 0.03 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00/20.00 | 11.00/15.00 | 3.00/4.00 |
| 321 | 0.08 | 2.00 | 0.040 | 0.030 | 1.00 | 17.00/19.00 | 9.00/12.00 | 0.75/0.75 |
Stainless Steel Flanges Supplier - Mechanical Properties
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Heat Treating Temperature, min or range (°C) |
|---|---|---|---|---|
| 304/304H | 515 min | 205 min | 28% | 1040 |
| 304L | 485 min | 170 min | 28% | 1040 |
| 310/310S | 515 min | 205 min | 28% | 1040 |
| 316/316H | 515 min | 205 min | 28% | 1040 |
| 316L | 485 min | 170 min | 28% | 1040 |
| 316Ti | 515 min | 205 min | 28% | 1040 |
| 317/317L | 515 min | 205 min | 28% | 1040 |
| 321/321H | 515 min | 205 min | 28% | 1040-1050 |
Application Of Stainless Steel Flanges
Packing Of Stainless Steel Flange
The packing is done export-worthy, making sure the client receives our flanges in good condition.
Neelam Forge India is a ISO certified Stainless Steel Flange Manufacturer and Supplier in Kolkata.- Neelam Forge India
Different Types Of SS Flanges Stock Available in Kolkata
SS Flange Manufacturer and Supplier in Indian Cities
Neelam Forge India is a highly acclaimed Supplier and Manufacturer of SS Flanges. With a major presence in Kolkata and other cities and a trustworthy supplier of SS Flanges, we continue to be in a leading position in supplying durable, robust, and high-quality Stainless Steel Plate Flanges to customers across India.
