Stainless Steel Flange Manufacturer in Bhiwandi
Stainless Steel Slip-on Flange Supplier, SS Flange Manufacturer in Bhiwandi

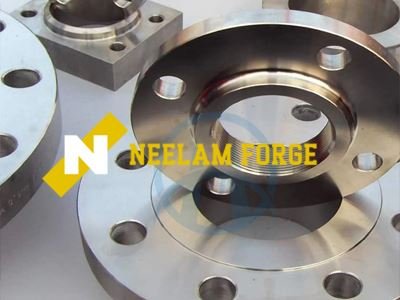

Neelam Forge India is one of the prime Stainless Steel Flange Manufacturer in Bhiwandi. Our SS Threaded Flanges are manufactured from premium super austenitic materials, known for their low carbon content and high strength. The SS Blind Flange is highly favored in Bhiwandi due to its exceptional resistance to corrosion. These Stainless Steel Pipe Flanges are versatile and widely applied in Bhiwandi for sealing pipe ends, ensuring long-lasting durability in welding, bolting, and maintenance activities.
TABLE OF CONTENTS
SS SORF Flange Manufacturers in Bhiwandi, ASME SA182 Stainless Steel Flange Price, SS BLRF Flange Supplier, Stainless Steel Flange Manufacturer in Bhiwandi

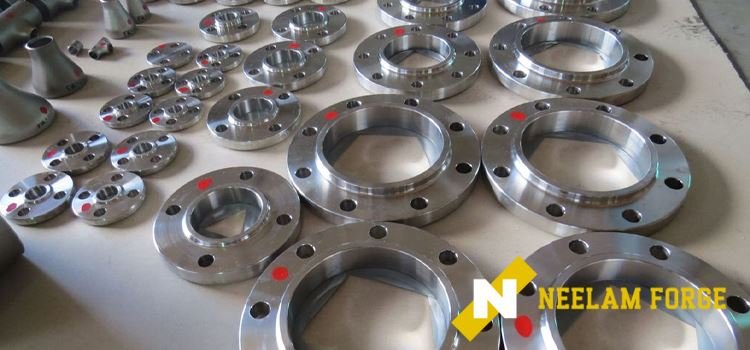

Neelam Forge India is a major Stainless Steel Flange Manufacturer, Supplier, and Stockist in Bhiwandi. Our superior Stainless Steel Welding Neck Flanges have strengthened our market position. We are globally acknowledged as a dependable Stainless Steel Slip-on Flange Supplier, with a strong focus on the automotive and aerospace industries in Bhiwandi. If you are in need of Stainless Steel Socket Weld Flanges or custom flange designs in Bhiwandi, contact us at sales@neelamforgeindia.com.
Standard Specification of Stainless Steel PN10 Flanges
| Manufacturer Specifications | ASTM A182 Stainless Steel Flanges |
| Types Of SS Flanges | Blind/ Slip On/ Weld Neck/ Socket Weld/ RTJ/ Lap Joint/ Threaded/ Reducing Flanges |
| SS Flange Dimensions | EN 1092-1/ EN 1092-2/ DIN 2501/ DIN 2527 |
| Size | 1" (12 NB) to 48" (1000NB) DN10~DN5000 |
| Face Type | Ring Type Joint (RTJ)/ Raised Face/ Flat Face |
| Available Grades | ASTM A182 F304 & F304L/ ASTM A182 F316 & F316L/ ASTM A182. |
| Flange Forging Methods | Forging/ Casting/ Rolling And Cutting |
| Pressure Rating | Class 150/ Class 300/ Class 400/ Class 600/ Class 600/ Class 900/ Class 1500/ Class 2500. |
| Pressure Calculation in DIN | PN6, PN10, PN25, PN40, PN64 | 6Bar, 10Bar, 16Bar, 25Bar, 40Bar. |
Stainless Steel Pipe Flanges Grades Available in Bhiwandi
SS Socketweld Flange Pressure Ratings
| ANSI/ASME B16.34 | PRESSURE RATING CHART | ||||||
| Temperature °F | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
SAE Stainless Steel Flange Manufacturer in Bhiwandi at discounted Price, Types of Stainless Steel Flanges
Equivalent Grades of Stainless Steel Flanges
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 304H | 1.4301 | S30409 | – | – | – | – | – |
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | – | X8CrNi25-21 |
| SS 310H | – | S31009 | – | – | – | – | – |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SS 316H | 1.4401 | S31609 | – | – | – | – | – |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| SS 317 | 1.4449 | S31700 | SUS 317 | – | – | – | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | – | – | – | X2CrNiMo18-15-4 |
| SS 321 | 1.4541 | S32100 | SUS 321 | – | – | – | X6CrNiTi18-10 |
| SS 347 | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
Stainless Steel Flanges Chemical Composition
| Type | Carbon | Manganese | Phosphorus | Sulphur | Silicon | Chromium | Nickel | Molybdenum |
|---|---|---|---|---|---|---|---|---|
| 302 | 0.15 | 2.00 | 0.045 | 0.030 | 1.00 | 17.00/19.00 | 8.00/10.00 | – |
| 309 | 0.20 | 2.00 | 0.045 | 0.030 | 1.00 | 22.00/24.00 | 12.00/15.00 | – |
| 304L* | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00/20.00 | 8.00/12.00 | – |
| 304* | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00/20.00 | 8.00/10.50 | – |
| 309S | 0.08 | 2.00 | 0.045 | – | 1.00 | 22.00/24.00 | – | – |
| 317 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00/1.00 | 18.00/20.00 | 11.00/15.00 | 3.00/4.00 |
| 310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.5 | 24.00/26.00 | 19.00/22.00 | – |
| 316* | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00/18.00 | 10.00/14.00 | 2.00/3.00 |
| 310 | 0.25 | 2.00 | 0.045 | 0.030 | 1.5 | 24.00/26.00 | 19.00/22.00 | – |
| 316L* | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00/18.00 | 10.00/14.00 | 2.00/3.00 |
| 347 | 0.08 | 2.00 | 0.040 | 0.030 | 0.5/1.00 | 17.00/19.00 | 9.00/12.00 | 0.5/0.75 |
| 317L | 0.03 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00/20.00 | 11.00/15.00 | 3.00/4.00 |
| 321 | 0.08 | 2.00 | 0.040 | 0.030 | 1.00 | 17.00/19.00 | 9.00/12.00 | 0.75/0.75 |
Mechanical Properties of Stainless Steel Flanges
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Heat Treating Temperature, min or range (°C) |
|---|---|---|---|---|
| 304/304H | 515 min | 205 min | 28% | 1040 |
| 304L | 485 min | 170 min | 28% | 1040 |
| 310/310S | 515 min | 205 min | 28% | 1040 |
| 316/316H | 515 min | 205 min | 28% | 1040 |
| 316L | 485 min | 170 min | 28% | 1040 |
| 316Ti | 515 min | 205 min | 28% | 1040 |
| 317/317L | 515 min | 205 min | 28% | 1040 |
| 321/321H | 515 min | 205 min | 28% | 1040-1050 |
Application Of Stainless Steel Flanges
Packing Of Stainless Steel Flange
The packing is done export-worthy, making sure the client receives our flanges in good condition.
Neelam Forge India is a ISO certified Stainless Steel Flange Manufacturer and Supplier in Peenya.- Neelam Forge India
Different Types Of SS Flanges Stock Available in Bhiwandi
SS Flange Manufacturer and Supplier in Indian Cities
Neelam Forge India is a highly acclaimed Supplier and Manufacturer of SS Flanges. With a major presence in Bhiwandi and other cities and a trustworthy supplier of SS Flanges, we continue to be in a leading position in supplying durable, robust, and high-quality Stainless Steel Plate Flanges to customers across India.
