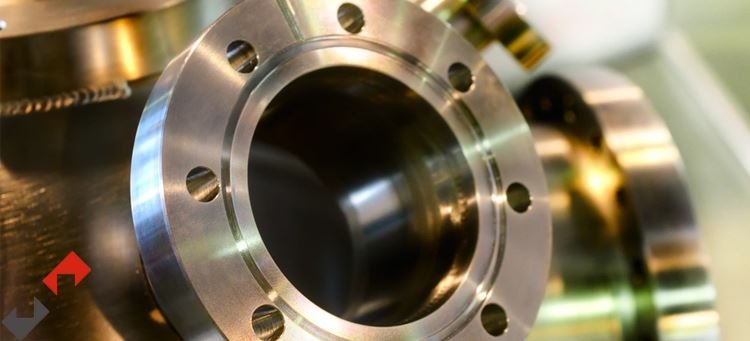

Inconel Flange Supplier and Exporter in Sharjah
Neelam Forge is the top Inconel Flange Suppleir in Sharjah. The Inconel Plate Flange contains wall thickness values between 2mm through 40mm. Engineering applications of aerospace vehicles require continuous use of Inconel Alloy Flange due to their extreme temperature fluctuations. At Manufacturer facilities the process of DIN 2.4816 Inconel 600 Weld Neck Flange production applies quick heating followed by fastcooling treatment methods to achieve optimal mechanical attributes. The ASTM A182 Inconel Plate Flange works within a pressure range from PN6 to PN64.
TABLE OF CONTENTS
Verified Inconel 625 Flange, Inconel 600 Flange, Inconel 800 Flange, Inconel 718 Flange, Supplier, Exporter and Stockist in Sharjah
Neelam Forge India is a reliable Inconel 600 Flange Supplier, and Exporter in Sharjah. Advanced production equipment and modern technology enable Neelam Forge India to create excellent Inconel 718 Flange and Inconel 800 Flange with superior corrosion resistance and performance strength. Inconel 625 Flange products have two main uses: they function in both aerospace and marine environments and meet the requirements of power generation as well as petrochemicals and chemical processing sectors. Our company provides three protective coatings comprised of PTFE including Hot Dip Galvanizing and Epoxy Coating that enhance material durability and operational efficiency in demanding environmental situations. At Neelam Forge India customers get access to international service standards for high-performance Inconel flange selection.
Standard Specification of Inconel Industrial Flange
| Specification | ASTM A182 / ASME SA182 F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| UNS Grade | UNS S31803, S32205, S2205, S32550, S32750, S32760. |
| Standard | ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange, etc. |
| Size | ½” to 24″ |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
Inconel Flange Grades Available
Check Inconel 600, 718, 825 Alloy Steel Flange suppliers available grades.
Inconel Pipe Flange Weight Chart
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 Flange | PN14 Flange | 95 | 67 | 4 | M12 | 14 |
| ANSI B16.5 Flange | ANSI 150 Flange | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flange | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flange | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flange | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flange | 121 | 83 | 4 | 19 | 22 | |
| AS 2129 Flange | Table C Flange | 95 | 67 | 4 | 13 | 14 |
| Table D Flange | 95 | 67 | 4 | 13 | 14 | |
| Table E Flange | 95 | 67 | 4 | 13 | 14 | |
| Table F Flange | 95 | 67 | 4 | 13 | 14 | |
| Table H Flange | 114 | 83 | 4 | 16 | 17 | |
| Table J Flange | 114 | 83 | 4 | 16 | 17 | |
| ISO 7005 (DIN) Flange | PN6 Flange | 80 | 55 | 4 | M10 | 11 |
| PN10 Flange | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flange | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flange | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flange | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flange | 95 | 65 | 4 | M12 | 14 |
Inconel Plate Flange Supplier in Sharjah at discounted Price, Types of Inconel Flange
Inconel UNS N06625 Socket weld Flange Pressure Ratings
| CLASS OF PRESSURE | 300, 150, 600, 900, 2500, 1500, 400, |
| ANSI/ASME B 16.5 | Slip on /Threaded/ High Hub Blind / Welding Neck / Socket Weld / Ring Type Joint / Lap Joint Flange, |
| CLASS OF PRESSURE | 75, 900, 300, 150, 400, 600 |
| ANSI /ASME B 16.47 | Series B and A Blind and Welding Neck Flange |
| CLASS OF PRESSURE | 1500, 600, 300, 400, 900, 2500 |
| CLASS OF PRESSURE | PN 6 - PN 100 |
| ANSI /ASME B 16.36 | Welding Neck/ Slip on / Threaded Flange |
| PRESSURE CLASS | PN 2.05- TO PN 40 |
| BS 4504 SEC 3.1 | Blank / Loose Plate With Weld Neck/ Hubbed Slip on / Loose Plate/ Lapped Pipe End/Welding Neck /Hubbed Threaded /Plate Flange |
| CLASS OF PRESSURE | PN 2.05 - PN 400 |
| DIN FLANGES | DIN 2633, 2566, 2636, 2573, 2527, 2628, 2655, 2629, 2631 2627, 2635, 2637,2638, 2576, 2632, 2641,2642, 2634, 2656, 2673 |
| BS 4504[PART 1] | Loose Plate With Weld On Plate Collar/ Slip-On Hubbed Threaded/ Welding Neck/ Blank/Plate Flange |
| CLASS OF PRESSURE | 600, 2500, 1500, 400, 300, 900, 150 |
| BS 1560 BOSS | Slip-On / Socket Welding /Screwed Boss/ Blind /Welding Neck / Lapped Flange |
| TABLE | H, D, E, F |
| BS10 | Plate, Slip-On Boss/ Slip-On/ Welding Neck /Blind / Screwed Boss Flange |
Chemical Composition of Inconel Flange
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | - | 50.00 - 55.00 | 17.00 - 21.00 |
Mechanical Properties of Inconel Flange
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Inconel Flange Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | - | - | - | - | - |
Application Of Inconel Flange
Packing Of Inconel Flange
The packing is done export-worthy, making sure the client receives our flanges in good condition.
Neelam Forge India is a supplier of Inconel Flange supplying in all Ratings up to 2500#.- Neelam Forge India
