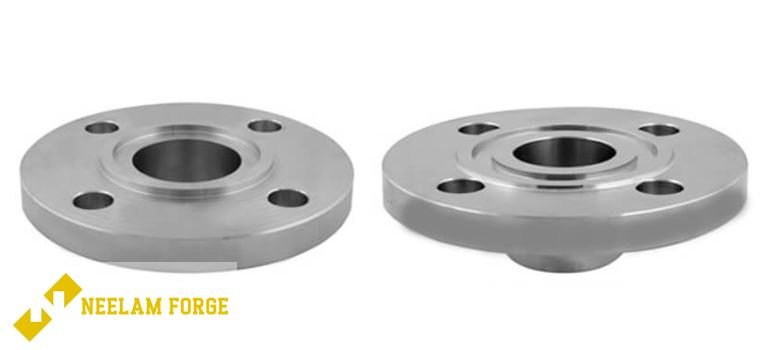

Stainless Steel Groove and Tongue Flange Manufacturer, Supplier, and Exporters in India
Neelam Forge India is one of the biggest Stainless Steel Tongue And Groove Flange Manufacturer in India. We focus on producing and supplying Stainless Steel Groove and Tongue Flanges that meet or exceed certain quality standards. A SS tongue and groove flange consists of a raised ring called the tongue that is welded to a flange face that has a groove on the outside. Stainless steel flanges are available in high quality and size, are easy to install and maintain, and are easily available in the market.
TABLE OF CONTENTS
ASTM A182 Stainless Steel Groove and Tongue Flanges, Manufacturer of Stainless Steel Tongue And Groove Floor Flange, A182 Gr F316 Tongue And Groove Flange Stockholder, Best Price Of Groove & Tongue Flanges, Stainless Steel Large Tongue Groove Flange manufacturer in India
That is when have to match the Stainless Steel Groove and Tongue faces of these flanges. A raised circular ridge (Tongue) is provided on one flange face while the mating flange contains a matching flat recess (Groove) on its face. Stainless Steel Tongue and groove facings are standard in both the large types as well as the small ones.
They are also different from male and female as the inside diameters of the tongue and groove do not deepen into the flange base to hold the gasket at its inner and outer perimeters. These Flanges are often used in pump covers and Valve Bonnets. For any specific requirement about SS Tongue And Groove Flanges that is offered at the lowest market price, you can send an e-mail to sales@neelamforgeindia.com. Neelam Forge India is also the largest Stainless Steel Flange Manufacturer in India
Standard Specification of Stainless Steel Tongue And Groove Flanges
| Groove And Tongue Flanges Size Chart | 1/2 Inch to 48 inch |
| Pressure Rating ANSI | Class 150, 300, 600, 900, 1500, 2500 LBS |
| Pressure Calculation in DIN | 6, 10, 16, 25, 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS Standards | 5, 10, 16, 20, 30, 40, 63 K |
| EN Standards | 6, 10, 16, 25,r 40Bar |
| UNI Standards | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Most common types of Tongue & Groove Flange | Forged / Threaded / Screwed / Plate |
| Material of Construction | Standard | Grades |
| Stainless Steel Tongue & groove Flanges | ASTM A182 , A240 | F304, 304L, 304H, 316, 316L, 310S, 310H, 317, 317L, 321, 321H, 347, 202 |
| Duplex Steel Tongue & groove Flanges | ASTM A182, A240 | UNS F44, F45, F51, F53, F55, F60, F61 |
Types of Flanges We Manufactures
SS Tongue And Groove Flange Dimensions
| DN | d1 | d2 | d3 | d4 | d5 | d6 | d7 | d8 | f1 | f2 |
| ¾" | 1,69 (42,9) |
1,75 (44,5) |
1,69 (42,9) |
1,75 (44,5) |
1,31 (33,3) |
1,25 (31,8) |
2,12 (53,8) |
2,06 (52,3) |
0,25 (6,4) |
0,19 (4,8) |
| 1½" | 2,88 (73,2) |
2,94 (74,7) |
2,50 (63,5) |
2,56 (65,0) |
2,12 (53,8) |
2,06 (52,3) |
3,31 (84,1) |
2,88 (73,2) |
0,25 (6,4) |
0,19 (4,8) |
| 1" | 2,00 (50,8) |
2,06 (52,3) |
1,88 (47,7) |
1,94 (49,3) |
1,50 (38,1) |
1,44 (36,6) |
2,44 (62,0) |
2,25 (57,2) |
0,25 (6,4) |
0,19 (4,8) |
| ½" | 1,38 (35,1) |
1,44 (36,6) |
1,38 (35,1) |
1,44 (36,6) |
1,00 (25,4) |
0,94 (23,9) |
1,81 (46,0) |
1,75 (44,5) |
0,25 (6,4) |
0,19 (4,8) |
| 1¼" | 2,50 (63,5) |
2,56 (65,0) |
2,25 (57,2) |
2,31 (58,7) |
1,88 (47,8) |
1,81 (46,0) |
2,94 (74,7) |
2,62 (66,6) |
0,25 (6,4) |
0,19 (4,8) |
| 2" | 3,62 (92,0) |
3,69 (93,7) |
3,25 (82,6) |
3,31 (84,1) |
2,88 (73,0) |
2,81 (71,4) |
4,06 (103,1) |
3,62 (92,0) |
0,25 (6,4) |
0,19 (4,8) |
| 4" | 6,19 (157,2) |
6,25 (158,8) |
5,69 (144,5) |
5,75 (146,1) |
5,19 (131,8) |
5,12 (130,0) |
6,62 (168,1) |
6,19 (157,2) |
0,25 (6,4) |
0,19 (4,8) |
| 2½" | 4,12 (104,6) |
4,19 (106,4) |
3,75 (95,2) |
3,81 (96,8) |
3,38 (85,8) |
3,31 (84,1) |
4,56 (115,8) |
4,12 (104,6) |
0,25 (6,4) |
0,19 (4,8) |
| 3" | 5,00 (127,0) |
5,06 (128,5) |
4,62 (117,5) |
4,69 (119,1) |
4,25 (108,0) |
4,19 (106,4) |
5,44 (138,2) |
5,00 (127,0) |
0,25 (6,4) |
0,19 (4,8) |
| 5" | 7,31 (185,7) |
7,38 (187,5) |
6,81 (173,0) |
6,88 (174,8) |
6,31 (160,3) |
6,25 (158,8) |
7,75 (196,9) |
7,31 (185,7) |
0,25 (6,4) |
0,19 (4,8) |
| 6" | 8,50 (215,9) |
8,56 (217,5) |
8,00 (203,2) |
8,06 (204,7) |
7,50 (190,5) |
7,44 (189,0) |
8,94 (227,0) |
8,50 (215,9) |
0,25 (6,4) |
0,19 (4,8) |
| 8" | 10,62 (269,8) |
10,69 (271,5) |
10,00 (254,0) |
10,06 (255,5) |
9,38 (238,3) |
9,31 (236,5) |
11,06 (281,0) |
10,62 (269,8) |
0,25 (6,4) |
0,19 (4,8) |
| 12" | 15,00 (381,0) |
15,06 (382,5) |
14,25 (362,0) |
14,31 (363,5) |
13,50 (342,9) |
13,44 (341,4) |
15,44 (392,2) |
15,00 (381,0) |
0,25 (6,4) |
0,19 (4,8) |
| 14" | 16,25 (412,8) |
16,31 (414,3) |
15,50 (393,7) |
15,56 (395,2) |
14,75 (374,7) |
14,69 (373,1) |
16,69 (423,9) |
16,25 (412,8) |
0,25 (6,4) |
0,19 (4,8) |
| 10" | 12,75 (323,5) |
12,81 (325,4) |
12,00 (304,8) |
12,06 (306,3) |
11,25 (285,8) |
11,19 (284,2) |
13,19 (335,0) |
12,75 (323,5) |
0,25 (6,4) |
0,19 (4,8) |
| 16" | 18,50 (469,9) |
18,56 (471,5) |
17,62 (447,6) |
17,69 (449,3) |
16,75 (425,5) |
16,69 (423,9) |
18,94 (481,0) |
18,50 (469,9) |
0,25 (6,4) |
0,19 (4,8) |
| 20" | 23,00 (584,2) |
23,06 (585,8) |
22,00 (558,8) |
22,06 (560,3) |
21,00 (533,4) |
20,94 (531,9) |
23,44 (595,4) |
23,00 (584,2) |
0,25 (6,4) |
0,19 (4,8) |
| 24" | 27,25 (692,2) |
27,31 (693,7) |
26,25 (666,8) |
26,31 (668,3) |
25,25 (641,4) |
25,19 (639,8) |
27,69 (703,3) |
27,25 (692,2) |
0,25 (6,4) |
0,19 (4,8) |
| 18" | 21,00 (533,4) |
21,06 (535,0) |
20,12 (511,0) |
20,19 (512,8) |
19,25 (489,0) |
19,19 (487,4) |
21,44 (544,6) |
21,00 (533,4) |
0,25 (6,4) |
0,19 (4,8) |
Different Types Of SS Tongue And Groove Flanges Available in Stock
Application Of ANSI B16.36 Tongue And Groove Flanges
Packing Of ANSI B16.36 Tongue And Groove Flanges
The packing is done export-worthy, making sure the client receives our ANSI B16.36 Tongue And Groove Flanges in good condition.
