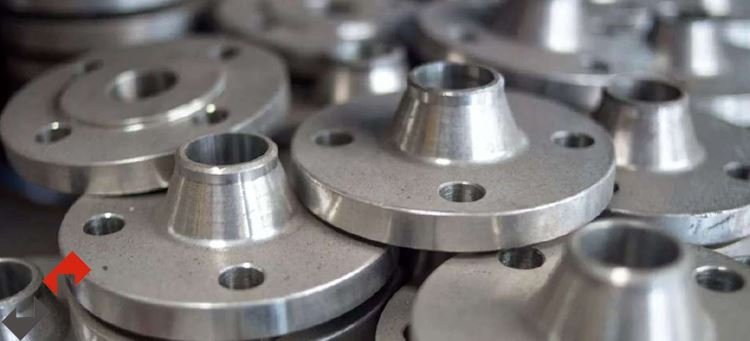

Inconel Flange Supplier and Stockist in Kuwait
Neelam Forge India one of the leading Inconel Flanges Supplier in Kuwait. The Inconel Plate Flange can be found at different wall thicknesses that extend from 2mm to 40mm. Inconel Alloy Flange needs constant use in aerospace engines because of their extreme heat and cooling cycles. Manufacturing DIN 2.4816 Inconel 600 Weld Neck Flange at the production facility requires rapid temperature fluctuations for improving mechanical properties through heat and cold processing techniques. Inconel Plate Flange operated by ASTM A182 possess pressure capability from PN6 up to PN64.
TABLE OF CONTENTS
Inconel 718 Flange Exporter, Inconel 600 Flange Dealers, Inconel 625 Flange Supplier, Inconel 800 Flange Supplier and Exporter in Kuwait
Neelam Forge India is a trusted Inconel 600 Flanges Supplier and Exporter in Kuwait. The combination of modern technology tools and advanced equipment allows us to produce top-quality Inconel 718 Flange and Inconel 800 Flange that exhibit enhanced corrosion resistance capabilities and improved performance strength. The Inconel 625 Flange product line serves aerospace projects while serving both marine applications and power generation needs and petrochemical and chemical processing industries. At our business we provide PTFE protective coating alongside Hot Dip Galvanizing and Epoxy Coating products which work to increase material lifetime and operational effectiveness in adverse conditions. Neelam Forge India offers customers a choice of Inconel Flanges that meet international service standards for high-performance operation.
Standard Specification of Inconel Industrial Flange
| Specification | ASTM A182 / ASME SA182 F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| UNS Grade | UNS S31803, S32205, S2205, S32550, S32750, S32760. |
| Standard | ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange, etc. |
| Size | ½” to 24″ |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
Inconel Flange Grades Available
Check Inconel 600, 718, 825 Alloy Steel Flange suppliers available grades.
Inconel Pipe Flange Weight Chart
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 Flange | PN14 Flange | 95 | 67 | 4 | M12 | 14 |
| ANSI B16.5 Flange | ANSI 150 Flange | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flange | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flange | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flange | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flange | 121 | 83 | 4 | 19 | 22 | |
| AS 2129 Flange | Table C Flange | 95 | 67 | 4 | 13 | 14 |
| Table D Flange | 95 | 67 | 4 | 13 | 14 | |
| Table E Flange | 95 | 67 | 4 | 13 | 14 | |
| Table F Flange | 95 | 67 | 4 | 13 | 14 | |
| Table H Flange | 114 | 83 | 4 | 16 | 17 | |
| Table J Flange | 114 | 83 | 4 | 16 | 17 | |
| ISO 7005 (DIN) Flange | PN6 Flange | 80 | 55 | 4 | M10 | 11 |
| PN10 Flange | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flange | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flange | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flange | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flange | 95 | 65 | 4 | M12 | 14 |
Inconel Plate Flange Supplier in Kuwait at discounted Price, Types of Inconel Flange
Inconel UNS N06625 Socket weld Flange Pressure Ratings
| CLASS OF PRESSURE | 300, 150, 600, 900, 2500, 1500, 400, |
| ANSI/ASME B 16.5 | Slip on /Threaded/ High Hub Blind / Welding Neck / Socket Weld / Ring Type Joint / Lap Joint Flange, |
| CLASS OF PRESSURE | 75, 900, 300, 150, 400, 600 |
| ANSI /ASME B 16.47 | Series B and A Blind and Welding Neck Flange |
| CLASS OF PRESSURE | 1500, 600, 300, 400, 900, 2500 |
| CLASS OF PRESSURE | PN 6 - PN 100 |
| ANSI /ASME B 16.36 | Welding Neck/ Slip on / Threaded Flange |
| PRESSURE CLASS | PN 2.05- TO PN 40 |
| BS 4504 SEC 3.1 | Blank / Loose Plate With Weld Neck/ Hubbed Slip on / Loose Plate/ Lapped Pipe End/Welding Neck /Hubbed Threaded /Plate Flange |
| CLASS OF PRESSURE | PN 2.05 - PN 400 |
| DIN FLANGES | DIN 2633, 2566, 2636, 2573, 2527, 2628, 2655, 2629, 2631 2627, 2635, 2637,2638, 2576, 2632, 2641,2642, 2634, 2656, 2673 |
| BS 4504[PART 1] | Loose Plate With Weld On Plate Collar/ Slip-On Hubbed Threaded/ Welding Neck/ Blank/Plate Flange |
| CLASS OF PRESSURE | 600, 2500, 1500, 400, 300, 900, 150 |
| BS 1560 BOSS | Slip-On / Socket Welding /Screwed Boss/ Blind /Welding Neck / Lapped Flange |
| TABLE | H, D, E, F |
| BS10 | Plate, Slip-On Boss/ Slip-On/ Welding Neck /Blind / Screwed Boss Flange |
Chemical Composition of Inconel Flange
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | - | 50.00 - 55.00 | 17.00 - 21.00 |
Mechanical Properties of Inconel Flange
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Inconel Flange Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | - | - | - | - | - |
Application Of Inconel Flange
Packing Of Inconel Flange
The packing is done export-worthy, making sure the client receives our flanges in good condition.
Neelam Forge India is a Supplier and Exporter of Inconel Flange supplying in all Ratings up to 2500#.- Neelam Forge India
