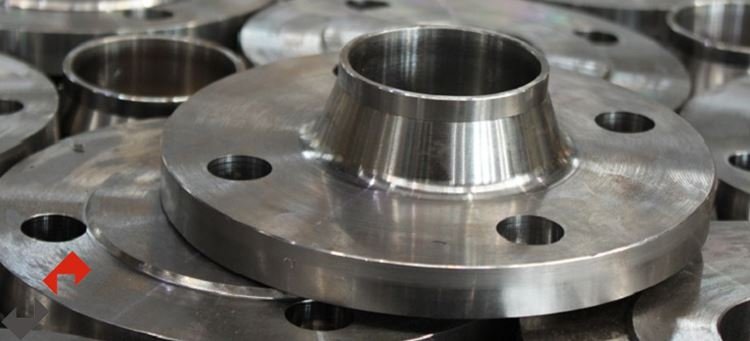

Inconel Flange Supplier in UAE
Neelam Forge India is one of the prominent Inconel Flange Supplier in UAE. We also stock Inconel Plate Flange with wall thickness spanning between 2mm and 40mm. Engineers in the aerospace industry constantly must use Inconel Alloy Flange because their operating environment requires quick temperature rises and falls. At Manufacturer facilities rapid heat and cold treatment strokes are applied to produce superior mechanical properties for DIN 2.4816 Inconel 600 Weld Neck Flange production. The ASTM A182 Inconel Plate Flange works under PN6 to PN64 pressure points.
TABLE OF CONTENTS
Verified Inconel 800 Flange, Inconel 625 Flange, Inconel 600 Flange, Inconel 718 Flange, Supplier, Exporter and Stockist in UAE
Neelam Forge India operates as a reliable Inconel 600 Flanges Supplier, and Exporter in UAE. The company produces superior Inconel 718 Flange and Inconel 800 Flange products through modern technology along with advanced equipment that increases their corrosion resistance and operational strength. The aerospace market uses Inconel 625 Flange products alongside the marine market and these flanges also serve the power generation industry as well as petrochemicals and chemical processing industries. We provide company clients with three protective coating products including PTFE and Hot Dip Galvanizing and Epoxy Coating to enhance material durability and operational efficiency under harsh environmental conditions. Inconel Flanges with high-performance capabilities are available to customers at the Neelam Forge India facility through international service standards.
Standard Specification of Inconel Industrial Flange
| Specification | ASTM A182 / ASME SA182 F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| UNS Grade | UNS S31803, S32205, S2205, S32550, S32750, S32760. |
| Standard | ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange, etc. |
| Size | ½” to 24″ |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
Inconel Flange Grades Available in UAE
Check Inconel 600, 718, 825 Alloy Steel Flange suppliers available grades.
Inconel Pipe Flange Weight Chart
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 Flange | PN14 Flange | 95 | 67 | 4 | M12 | 14 |
| ANSI B16.5 Flange | ANSI 150 Flange | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flange | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flange | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flange | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flange | 121 | 83 | 4 | 19 | 22 | |
| AS 2129 Flange | Table C Flange | 95 | 67 | 4 | 13 | 14 |
| Table D Flange | 95 | 67 | 4 | 13 | 14 | |
| Table E Flange | 95 | 67 | 4 | 13 | 14 | |
| Table F Flange | 95 | 67 | 4 | 13 | 14 | |
| Table H Flange | 114 | 83 | 4 | 16 | 17 | |
| Table J Flange | 114 | 83 | 4 | 16 | 17 | |
| ISO 7005 (DIN) Flange | PN6 Flange | 80 | 55 | 4 | M10 | 11 |
| PN10 Flange | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flange | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flange | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flange | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flange | 95 | 65 | 4 | M12 | 14 |
Inconel Plate Flange Supplier in UAE at discounted Price, Types of Inconel Flange
Inconel UNS N06625 Socket weld Flange Pressure Ratings
| CLASS OF PRESSURE | 300, 150, 600, 900, 2500, 1500, 400, |
| ANSI/ASME B 16.5 | Slip on /Threaded/ High Hub Blind / Welding Neck / Socket Weld / Ring Type Joint / Lap Joint Flange, |
| CLASS OF PRESSURE | 75, 900, 300, 150, 400, 600 |
| ANSI /ASME B 16.47 | Series B and A Blind and Welding Neck Flange |
| CLASS OF PRESSURE | 1500, 600, 300, 400, 900, 2500 |
| CLASS OF PRESSURE | PN 6 - PN 100 |
| ANSI /ASME B 16.36 | Welding Neck/ Slip on / Threaded Flange |
| PRESSURE CLASS | PN 2.05- TO PN 40 |
| BS 4504 SEC 3.1 | Blank / Loose Plate With Weld Neck/ Hubbed Slip on / Loose Plate/ Lapped Pipe End/Welding Neck /Hubbed Threaded /Plate Flange |
| CLASS OF PRESSURE | PN 2.05 - PN 400 |
| DIN FLANGES | DIN 2633, 2566, 2636, 2573, 2527, 2628, 2655, 2629, 2631 2627, 2635, 2637,2638, 2576, 2632, 2641,2642, 2634, 2656, 2673 |
| BS 4504[PART 1] | Loose Plate With Weld On Plate Collar/ Slip-On Hubbed Threaded/ Welding Neck/ Blank/Plate Flange |
| CLASS OF PRESSURE | 600, 2500, 1500, 400, 300, 900, 150 |
| BS 1560 BOSS | Slip-On / Socket Welding /Screwed Boss/ Blind /Welding Neck / Lapped Flange |
| TABLE | H, D, E, F |
| BS10 | Plate, Slip-On Boss/ Slip-On/ Welding Neck /Blind / Screwed Boss Flange |
Chemical Composition of Inconel Flange
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | - | 50.00 - 55.00 | 17.00 - 21.00 |
Mechanical Properties of Inconel Flange
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Inconel Flange Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | - | - | - | - | - |
Application Of Inconel Flange
Packing Of Inconel Flange
The packing is done export-worthy, making sure the client receives our flanges in good condition.
Neelam Forge India is a Supplier of Inconel Flange supplying in all Ratings up to 2500#.- Neelam Forge India
